Before we dive into the rooftop unit maintenance checks, you should be performing on your units, lets cover the basics. We will talk through how a rooftop unit works, and its main components. Then we will discuss the maintenance that needs to be performed on each unit.
What Is A Rooftop Unit?

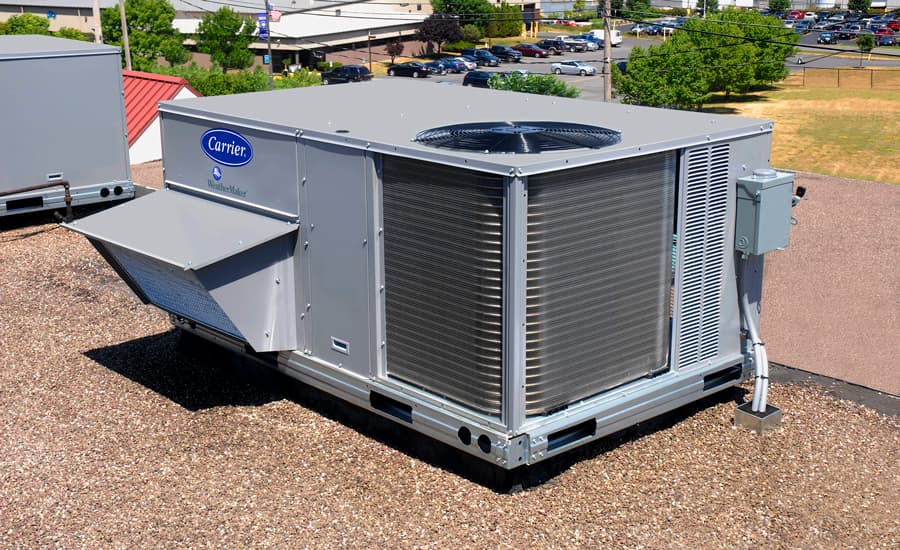

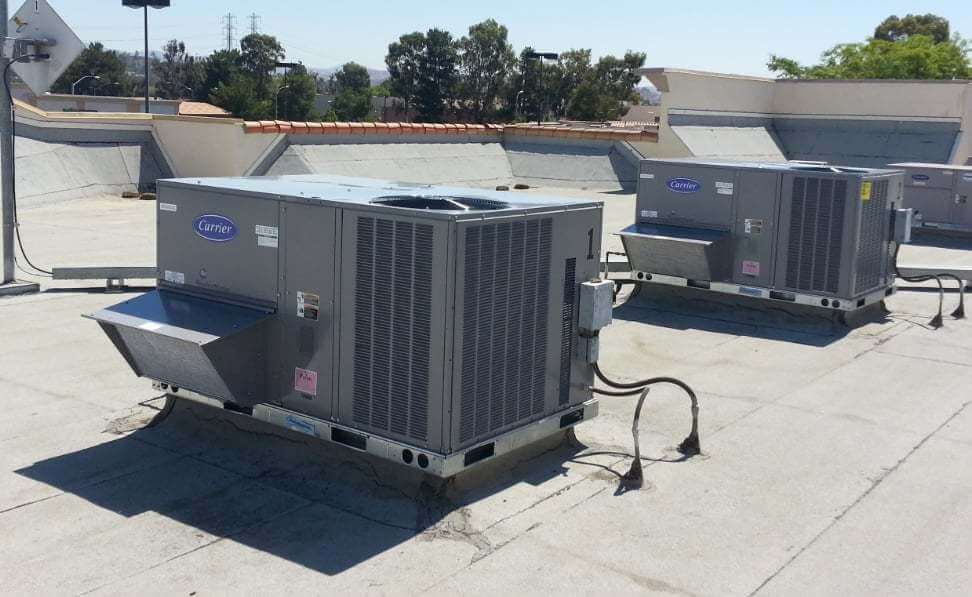

A rooftop unit is a package unit that is located on the rooftop (go figure). They provide conditioned air for a facility and push it through the facility using ductwork. These units are self-contained, meaning they have everything they need to condition air located inside of them.
What Are The Main Components Of A Rooftop Unit?
Dampers
These are set at specific positions to either allow more or less airflow into the unit. These can be manual or modulating depending on the manufacturer.
Filters
These help to filter the air before it enters the system. The size of the unit, frequency of use and outdoor conditions will determine how frequently these filters should be changed.
Coils
This can be a cooling coil, a heating coil or both. As the air enters the unit, it is run over one of these coils. This conditions the air before it is brought into the building.
Heat Exchangers
These help to improve the efficiency of the unit. Heat exchangers allow for preheating or cooling of incoming outside air by running it in close proximity to conditioned exhaust air leaving the building.

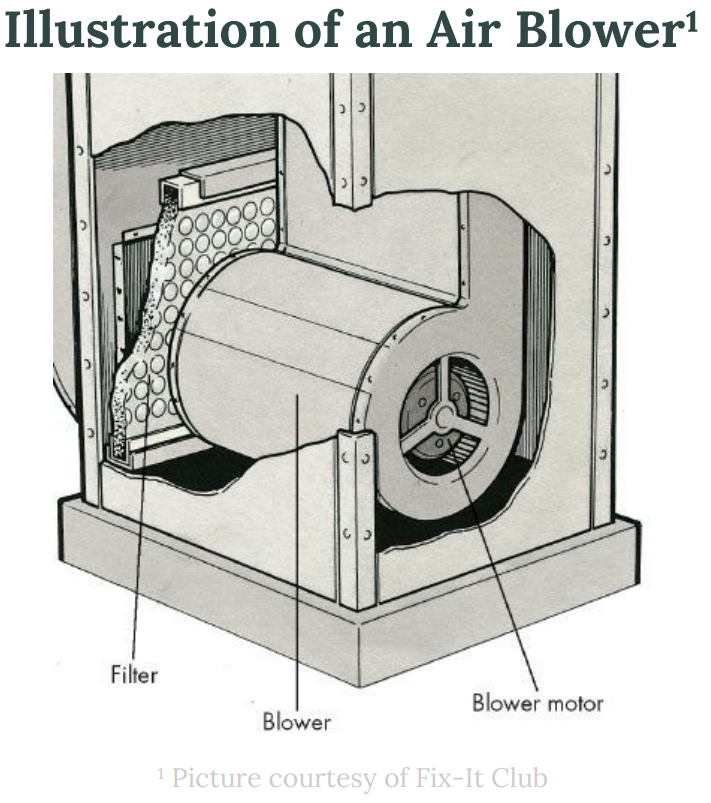

Fan
Also known as an air blower, these are what pump the air through the ducting and into the facility. These are most commonly centrifugal fans.
Heat Pump
These pump refrigerant through the coils to heat or cool the air. In some units, heating and cooling components are separate. Compressor and an AC cooling system are then used to cool coils. The heating component then produces heat through the use of electrical or gas.
Your Rooftop Unit Maintenance Checklist
Performing maintenance on your rooftop unit is important. Use these quarterly, and semi-annual and annul maintenance checks to ensure your unit is in good shape.
Semi Annual Maintenance Checks for RTU’s:
Check power supply operation
Measure volts/amps of condenser fan motors
Check starters and contact surfaces
Check operating temperatures
Examine refrigerant charge
Check site-glasses
Check all belts
Inspect all safety controls
Check superheat and adjustment
Check hot gas by-pass controls
Inspect head pressure controls
Check all operating controls
Examine and tighten all electrical connections
Check compressor efficiency
Check cap tubes/piping for chafing
Look for oil/refrigerant leaks
Check fan sheaves for alignment and wear
Check fan-bearing supports
Examine motor supports
Check motor hold-down bolts
Check damper operations
Inspect damper linkages
Check damper motor
Clear drainage of any blockages
Replace air filters (Quarterly)
Clean Coils (Annually)
Inspect Economizer (Annually)
Parts To Carry To Reduce RTU Breakdowns
Carrying back up parts in case of a breakdown is always a good idea. The last thing you want is to be with heat in the winter or cool air in the summer. But what parts should you consider carrying? We recommend:
Flame Sensors
Ignitors
Filters
Belts
Pressure Switches
